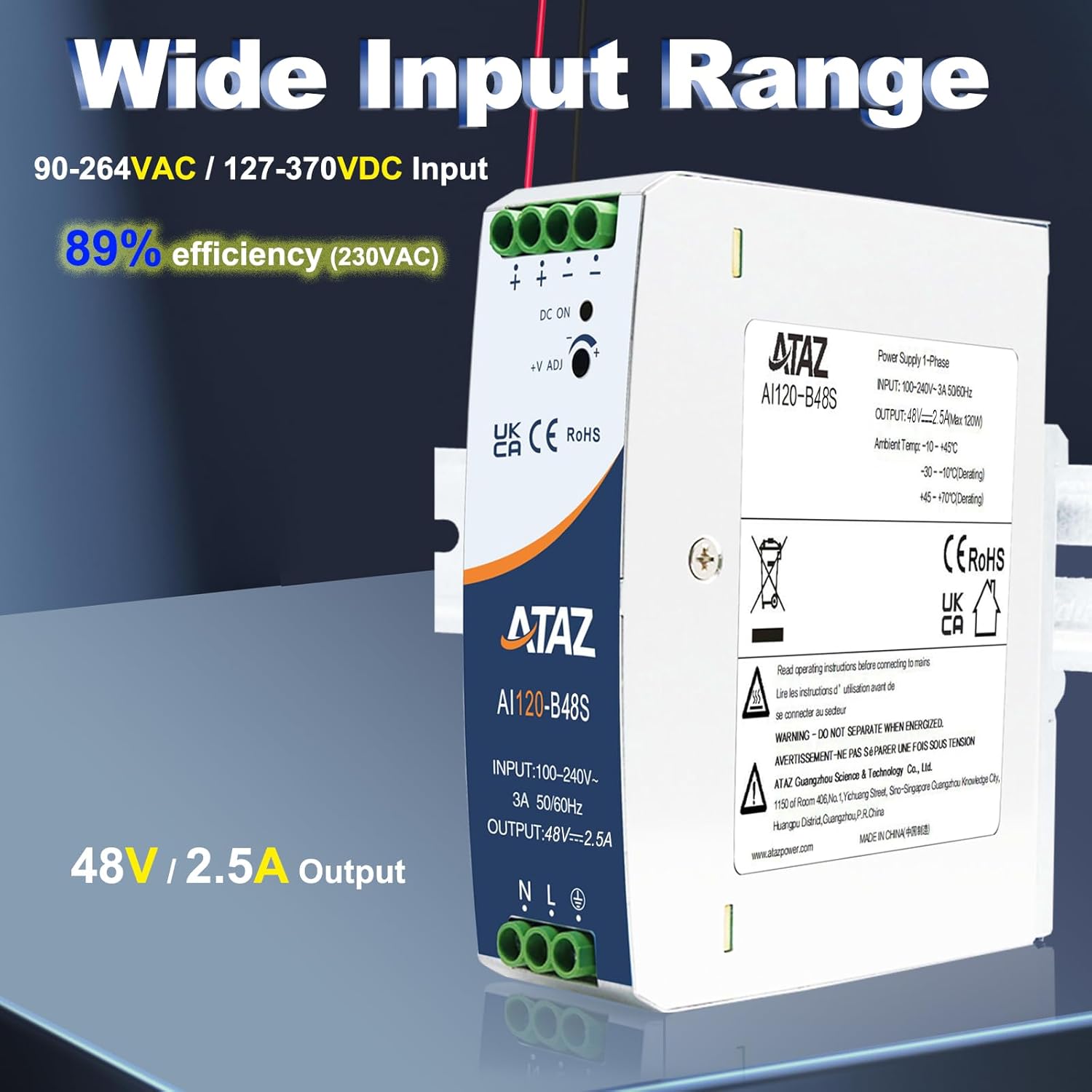

120W DIN Rail Power Supply with DC OK Function and Active PFC, 2.5A, 48VDC Output
4.3 (58 items)
Limited Time Sale$16.33 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212227564 | Release Date | 2026/04/06 | List Price | $10.89 | Model Number | 212227564 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Overview:The 120W DIN Rail Power Supply equips with DC OK Function and Active PFC, Providing overload protection and improved efficiency. It has a steady output of 2.5A, 48VDC. Besides, with the Din Rail and top-bottom heat dissipation design, it can save working space and adapt to hashed working temperatures.Features:1. Input voltage range: 90-264VAC/127-370VDC2. AC/DC (same terminal input)3. Operating temperature range: -20℃ to +60℃4. 89% efficiency and high reliability5. DC OK function6. Active PFC7. 150% peak power sustainable 3 seconds output8. Power start LED indicator9. Output short circuit, over current, over voltage, over temperature protection10. Suitable for 5000m altitude applications11. Overvoltage class Ⅱ12. For indoor use13. UL61010、UL508、EN/BS EN 62368 and other certification standardsSpecification: 1) Input voltage range: 85-264VAC/120-370VDC2) Rated output voltage and current: 48V/2.5A3) Efficiency: 89%4) DIN Rail type: Universal 35-DIN Rail, the rail need be grounded5) Shell material: Metal6) Size:109 x 36 x 125 mm（4.3*1.4*4.9inch）7) Weight: 450g (0.99 pounds）Package：120W DIN Rail Power*1
- 【Anti-interference capability】This 120W DIN rail power supply features a universal terminal for both AC and DC input, with bottom AC input and top DC output to enhance stability.
- 【DC OK Function】When the output DC is too low or too high, the circuit will be disconnected for overload protection, ensuring that the output DC is stable at 48VDC.
- 【Active PFC】This 120W power supply equips with active PFC and safety EMC, Making its efficiency up to 94%, efficient and safe.
- 【Anti-slip dual-layer gaskets】It has anti-slip dual-layer gaskets to resist shaking, ensuring the stability of DIN rail installation.
- 【-20°C—60°C】With the nickel-plated frame and top-bottom heat dissipation design, it can work for hashed environments ranging from -20 to 60°C.
| Brand | Xnyahitog |
|---|---|
| Wattage | 120 watts |
| Model Name | 120W-power |
| Form Factor | DIN Rail |
| Item Weight | 15.84 ounces |
| Manufacturer | Xinyuanhuitong |
| Model Number | 120W-power |
| Cooling Method | Air |
| Current Rating | 2.5 Amps |
| Output Wattage | 120 |
| Item Dimensions | 4.3 x 1.26 x 4.9 inches |
| Compatible Devices | Printer |
| Warranty Description | 2 years |
| Maximum Input Voltage | 264 Volts (AC) |
| Minimum Input Voltage | 120 Volts |
| System Bus Connector Type | ATX |
| Connector Type Used on Cable | phoenix |
