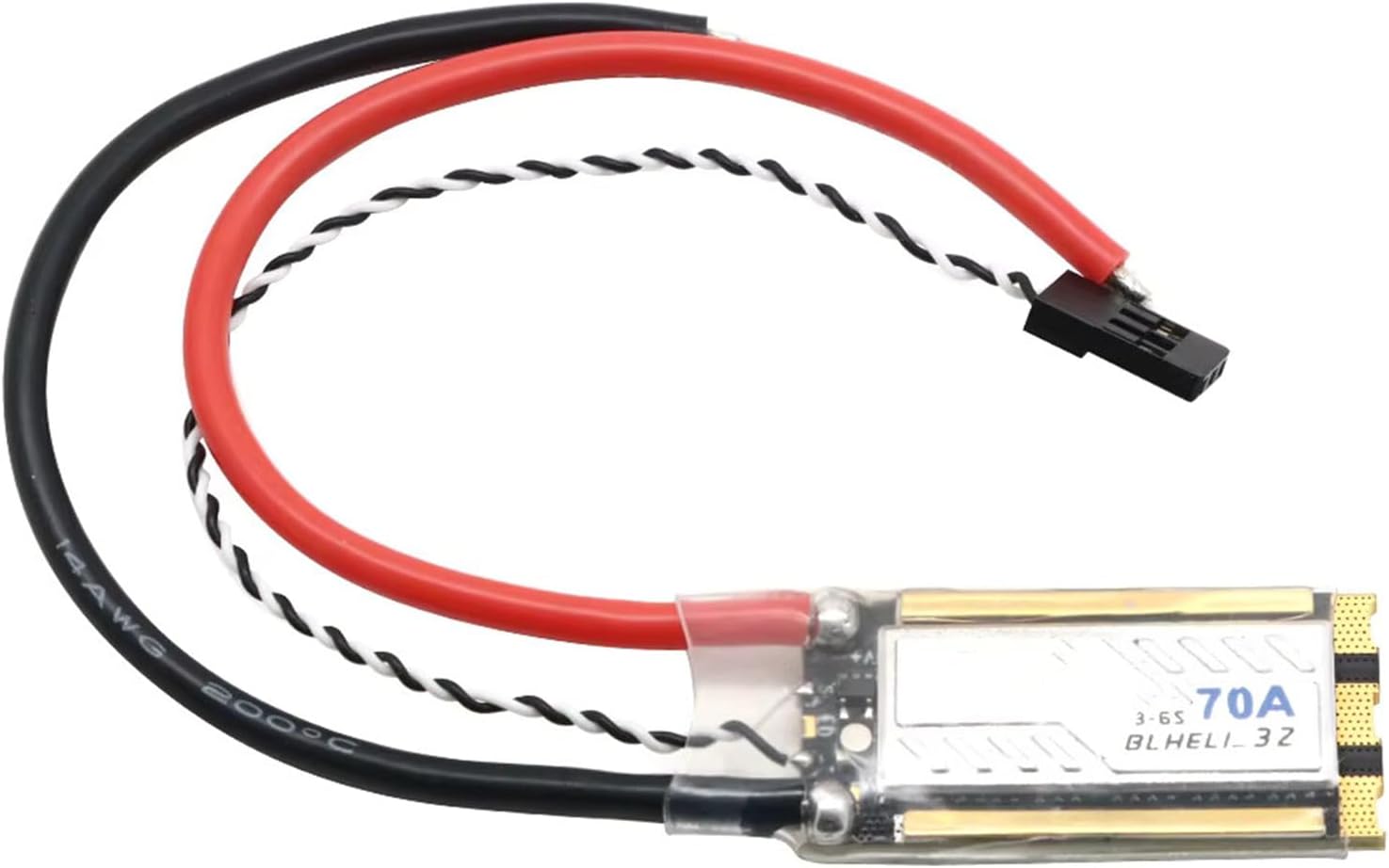

AM32 70A BLHeli_32 32Bit Single Brushless ESC 3-6S Current Meter Sensor for RC Airplane FPV DIY RC Parts (70A)

AM32 70A BLHeli_32 32Bit Single Brushless ESC 3-6S Current Meter Sensor for RC Airplane FPV DIY RC Parts Item name: Aria BLHeli_32bit 70A ESC Con. current: 70A Burst current(A)>10s: 80A Input voltage: 3-6S Lipo BEC: NO Size(mm)L*W*H: 21*28.16*6mm Weight: about 9.50g

• ◆ With 32bit ARM Cortex MCU STM32F051 48MHZ micro processor, throttle 2048 resolution ratio,strong anti-interference capacity.
• ◆ Built-in temperature sensor will pass the telemetry port to transfer and overlay to the OSD of FC,It can be programmed setting for temperature protection.
• ◆Support Blheli_32 firmware,can use the signal wire to upgrade the firmware or change the configuration on line.
• ◆ Current Meter to help show current indication of OSD
• ◆ With USB linker can be programmable throttle setting like support positive and negative,two-way mode,FPV 3D mode,motor speed,braking , PWM frequency,inlet angle speed setting, onboard RGB LED for customize color, Beep etc.
• ◆ It use the self-adaption control system,can go automatic with the all kind of the motor in the market,at the mean time it support up to 500HZ PWM,oneshot 125,oneshot 42,Multishot and Dshot 150/300/600/1200.
• ◆ With special optimize in multi-axis,the motor can launch smoother in a good throttle curve, fast response,great power, and highly support the multi-axis,fixed-wing and helicopter.
• ◆ The twisted- pair signal wire can lower the crosstalk inside cooper wire when it transfer,which will make the flight more stable.
• ◆ MCU hardware,Driver circuit ,Mosfet will come with double voltage protection.
• ◆ To adopt the new process MOSFET of low internal resistance, will help increase resistance to flow.Also,the professional MOS driver chip makes the best efficiency.
