Black And White Transmission Densitometer Black and White Density Meter Densimeter with Density Range D=0.00 To 5.00 Auto Calibration Software Sampling Time 0.8s Repeatability ±0.02

HFBTE Black And White Transmission Densitometer Black and White Density Meter Densimeter with Density Range D=0.00 To 5.00 Auto Calibration Software Sampling Time 0.8s Repeatability ±0.02 Introduction:◆This Black and White densitometer is a quality product using computer calibration technology. It has advantages of accurate reading, high stability, strong anti-interference capacity, attractive appearance and easy operation. each unit is equipped with density tablet and calibration software for testing its accuracy and calibration.◆Application： It can be widely applied to the fields such as nondestructive testing, sensitive materials, printing industry and medical industry etc. Main Features:◆Optical transmission theory◆Injected ABS housing◆Compact lightweight◆LED lighting source◆Anti-shock◆Calibration software is provided◆Suitable for various density film◆Display error can be calibrated by yourself Specifications:◆Range of density: D=0.00~5.00◆Measuring Error: 0.00—2.00 0.02;2.00—4.50 0.05;4.50—5.00 0.06◆Reading Stability: ±0.02◆Measurement Area: 2mm (Diameter of the Aperture Hole)◆Sampling time: 0.8s◆Displaying Mode: Three digital displaying◆Power consumption: About 25W◆Operation Environment：Temperature 0℃～40℃；Relative humidity ≤85%◆Power: 50~60Hz, 220V±10%◆Dimension: 260×265×110 (length ×width ×height)◆Weight: 2.1kg Standard Configurations (1)Black-White Densimeter (2)Standard Step Density Tablet (3)Software CD (4)Power Line (5)Carrying Case (6)Operating Manual

• (1)This Black and White Density Meter Range of density: D=0.00~5.00,Display error can be calibrated by yourself.
• (2)Calibration software is provided.It's suitable for various density film.

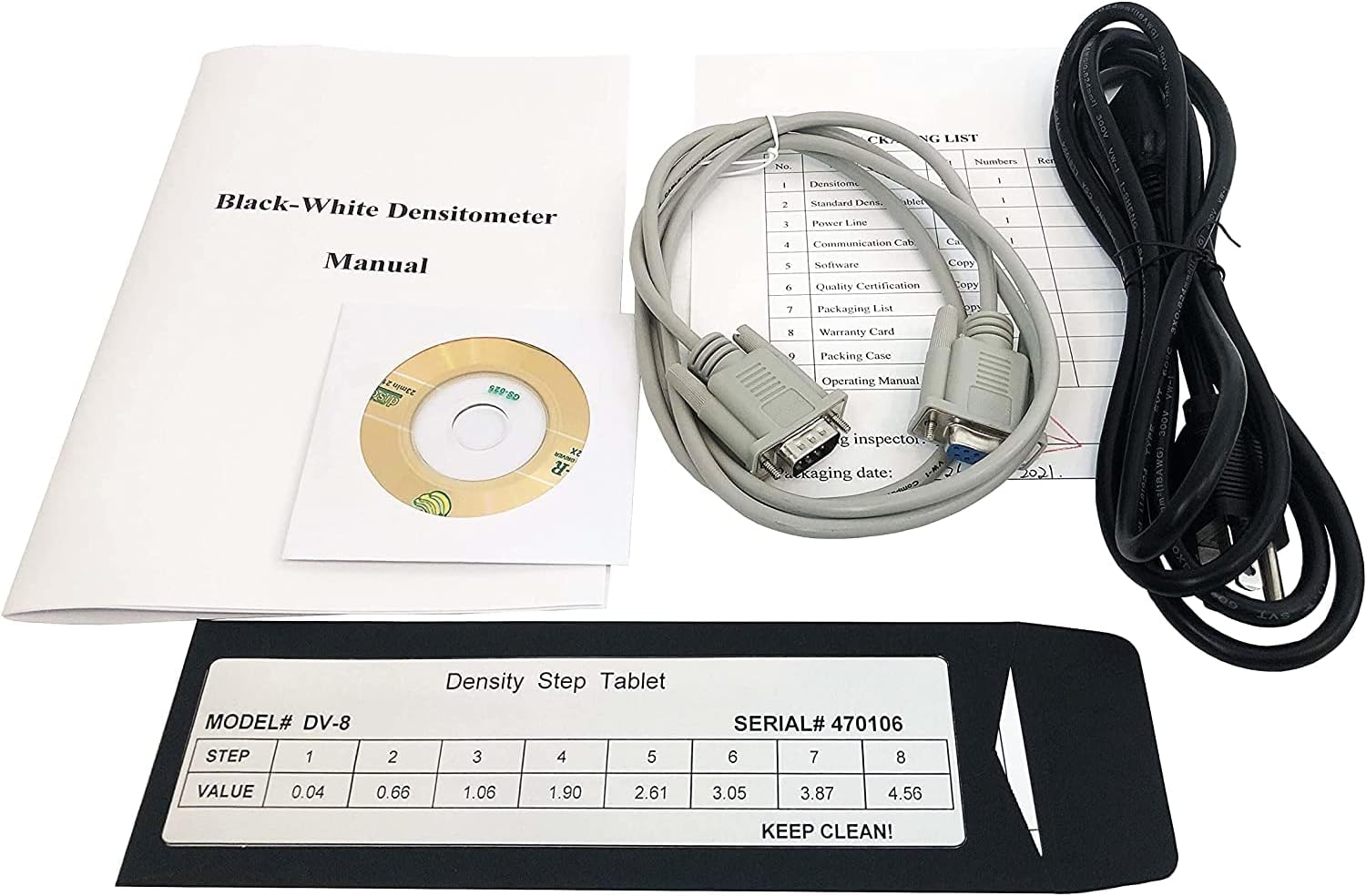

• (3)With standard calibration software and density film, users can calibrate by yourself.

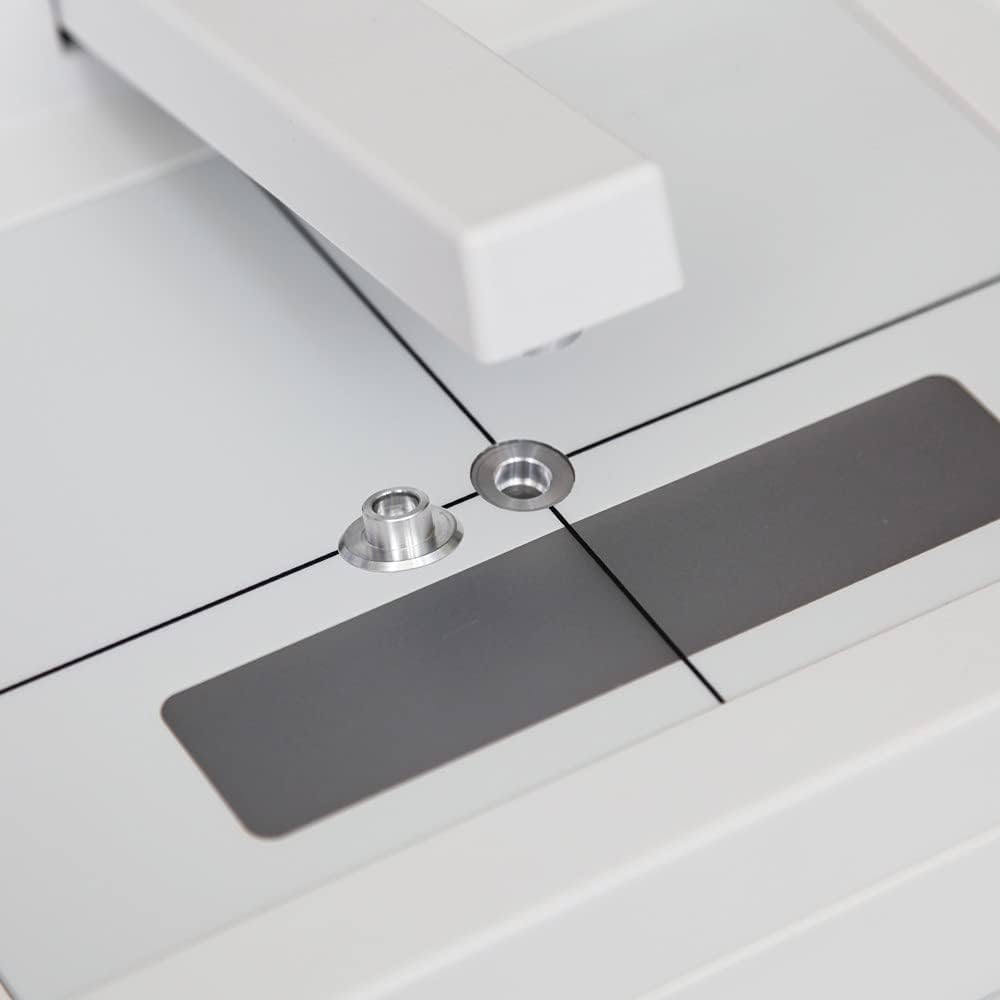

• (4)The light hole is easy to fall into the dust. After using for a period of time, if the calibration instrument does not appear 0.00, the user can open the light source shell with tape, and then wipe the dust on the LED with a cotton swab dipped in alcohol to ensure the normal use of the instrument.
• (5)This Black and White Transmission Densitometer replaces traditional ballasts and fluorescent tubes with 27 LED illuminators, providing excellent shock resistance and long life.
