CarBole Universal Electric External Inline Fuel Pump, 12V 300LPH High Flow Rate, with Mounting Bracket Clamp
4.0 (72 items)
Limited Time SaleUntil the end
18
33
57
$25.79 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $42.99
Product details
| Management number | 211951318 | Release Date | 2026/04/06 | List Price | $17.20 | Model Number | 211951318 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Fit for EFI System Only: DC 12V, Universal for Diesel & Gasoline, it is not recommended to applicable with alcohol /E85 fuels which may diminished working life of pump. Please use with a pre-filter
- External Inline Fuel Pump: Test Flow Rate: 200LPH at 75PSI; 255LPH at 43PSI; Max Flow Rate: 300LPH at 43PSI & 13.5V. 100% brand new and high quality. Universal external in line fuel pump. Does not need to be mounted inside fuel tank
- 10AN inlet and 6AN outlet connections for easily install on new applications and replace existing fuel pumps. Up to 300lph flow rate fuel pump delivers incredible performance and value, able to handle higher horsepower applications

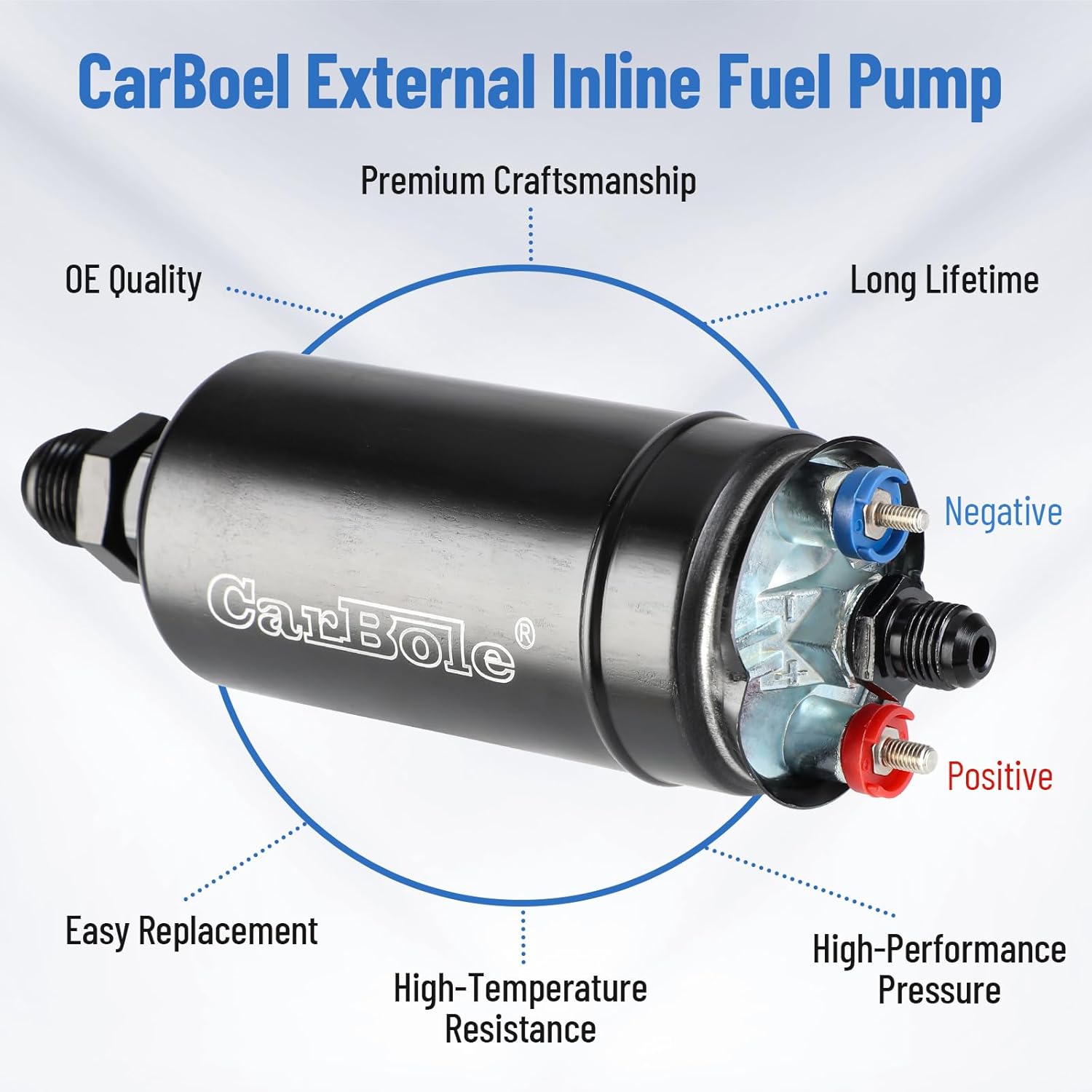

- Please connect the positive and negative poles of the power cord at the fuel outlet according to the markings. Package including necessary installation kits: pump*1, mounting bracket*1, inlet adapter*1, outlet adapter*1, one-way check valve*1, gaskets*2, nuts*2, terminals*2, covers*2

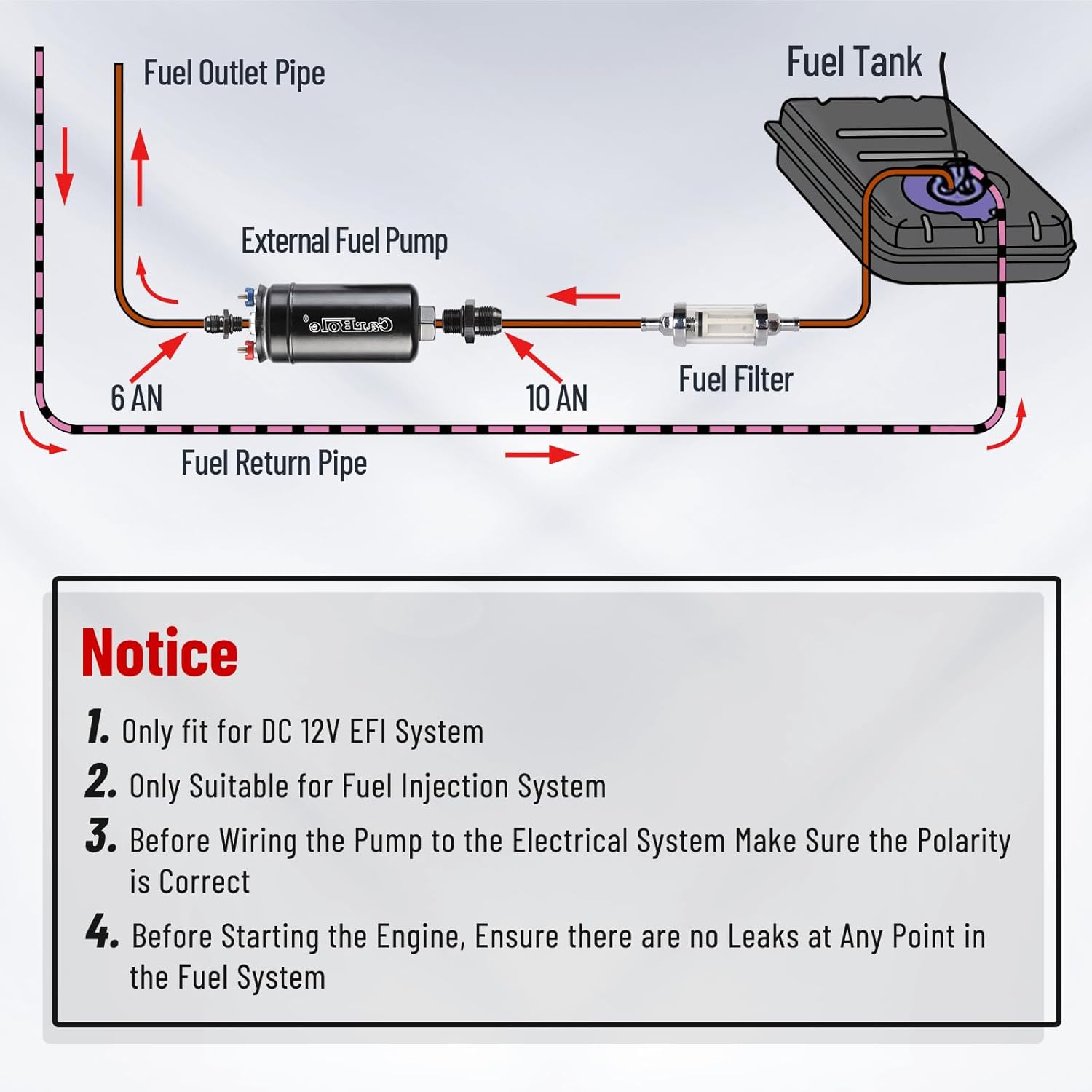

- Recommended to install below the tank ensures that fuel is gravity-fed from the fuel tank. When mounted on the vehicle, it may helps to stable and safe start-up of the vehicle, meeting the requirements of most turbocharging applications.
| Fit Type | Universal Fit |
|---|---|
| Gas Type | Diesel or Gasoline |
| Brand Name | CarBole |
| Manufacturer | CarBole |
| Body Material | Stainless Steel |
| Mounting Type | Tank Mount |
| Product Grade | Performance Part |
| Product Style | Gerotor |
| Connector Type | AN |
| Operation Mode | Automatic |
| Specification Met | SAE |
| Auto Part Position | Bottom |
| Inlet Connection Size | 0.63 Inches |
| Inlet Connection Type | Threaded |
| Outlet Connection Size | 0.25 Inches |
| Outlet Connection Type | NPT |
| Manufacturer Part Number | CB-10103174A-1 |
| Compatible with Vehicle Type | Car |
