CJ0618 7" X 14" 550W Mini Metal Lathe Variable Speed 0-2250RPM W/Nylon Gear & 4" Chuck Drilling Milling Threading Cutting

Product Description 7" x 14" Metal Lathe 550W Forceful Motor & Variable Speed Sturdy Nylon Gears The 7 x 14 Inch Precision Mini Benchtop Lathe features a 3jaw chuck a MT3 spindle taper a MT2 tailstock taper a tool rest and a 34 HP motor designed to perform various types of metal turning simple to operate Through high frequency quenching process and precision grinding of high-quality cast iron bed. 0-2250Rpm spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable. Key Features Heavy Sturdy Machine This lathe features an MT#2 taper and all the adjustment capability you need to work securely and accurately It has a swing over bed of 709 180 mm and a swing over cross slide of 14 350 mm so you can handle large projects Infinitely Variable Speeds Variable speed from 0-2250 RPM. The feed speed can be adjusted according to the requirements of different workpieces. This metal lathe includes a large through-hole shaft to avoid inconvenience while working long pieces. High Accuracy Chuck 3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm. Four-way Tool Post T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever. Professional Cross Slide The lathe is esigned with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 13.78" / 350 mm. Adjustable Tailstock The tailstock is compatible with any MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation. Specifications Power of Motor: 550W DC Single Phase Spi

• Sturdy Aluminium Construction The mini metal lathe bed is made of high grade iron Equipped with nylon gears this lathe machine is wearresistant sturdy more accurate rotation and professional Mini metal lathe power of motor: 550W. The full-length splash guard provides max. protection.

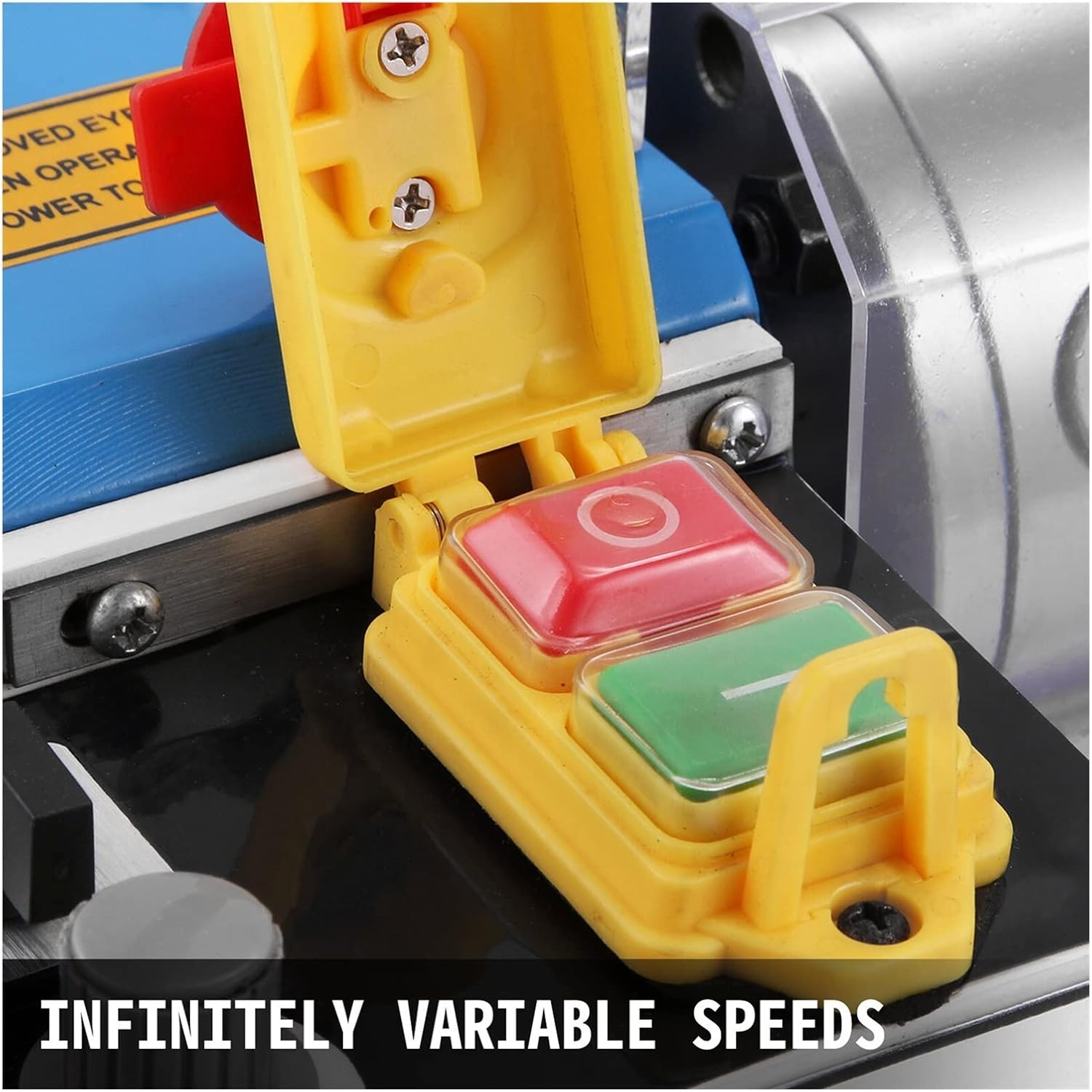

• Infinitely Variable Speeds: Spindle speed from 0-2250 RPM. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the v-slide ways are obtained by raw material, heat hardening and grinding. Emergency stop button included.
• Accurate 3-Jaw Chuck: Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Back splash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.0004" / 0.01 mm.
• Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.
• Wide Application: Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.
