ELING 5 Gauge Set 85mm GPS Speedometer Gauge 200MPH with Tachometer 8000RPM Fuel Level 0-190ohm Water Temp. 0-120℃ Oil Pressure 0-10Bar Voltmeter 12V for Auto Motorboat with Backlight

Product Features: -Suitable for all vehicles, boats and off-road vehicles -The signal comes directly from the satellite signal receiver(GPS Speed Sensor) -Be suitable for all kinds of tacho RPM sensors, and display the rotation speed of the engine. -Be suitable for all kinds of fuel level sensors with same signal, and display liquid level of the oil tank.-Be suitable for all kinds of water temperature sensors , and display the temperature of the water tank.-Be suitable for all kinds of pressure sensors, and display the value of oil pressure. Technical Data: -Fixing dimension: 85mm(3-3/8") 2in1 Multi-Function Gauge-Fixing dimension: 52mm(2") Fuel Level Gauge，Water Temperature Gauge，Oil Pressure Gauge，Voltmeter-Indicating Range: GPS Speedometer: 0-200MPH Tachometer: 0-8000RPMFuel Level Gauge: E-1/2-FWater Temperature Gauge: 0-120℃ Oil Pressure Gauge: 0-10Bar 0-150PsiVoltmeter: 8-16V-Backlight : red (for 85mm gauge)-Backlight : 7 Backlights available (red, green, blue, white, yellow, cyan, purple) (for 52mm gauge)-2in1 Multi-Function Gauge functions: -Trip meter range: 0-999.9 miles-ODO Mileage Range: 0-999999 miles-Tripmeter and ODO will record the last mileage after power off. You can press the back to reset them to 0. -OverSpeed Buzzer Alarm (Value Adjustable) -Indication light: LEFT, HIGH BEAM, RIGHT-Signal:Fuel Level Gauge: 0-190ohmWater Temperature Gauge: 1600-22ohm Oil Pressure Gauge: 10-184ohm -Operation mode: LCD display, stepper motor Package Includes: 1x 2in1 Multi-Function Gauge 1x Fuel Level Gauge1x Water Temperature Gauge1x Oil Pressure Gauge1x Voltmeter1x GPS Speed Sensor 6x Multi-plug socket 5x Installation Instruction

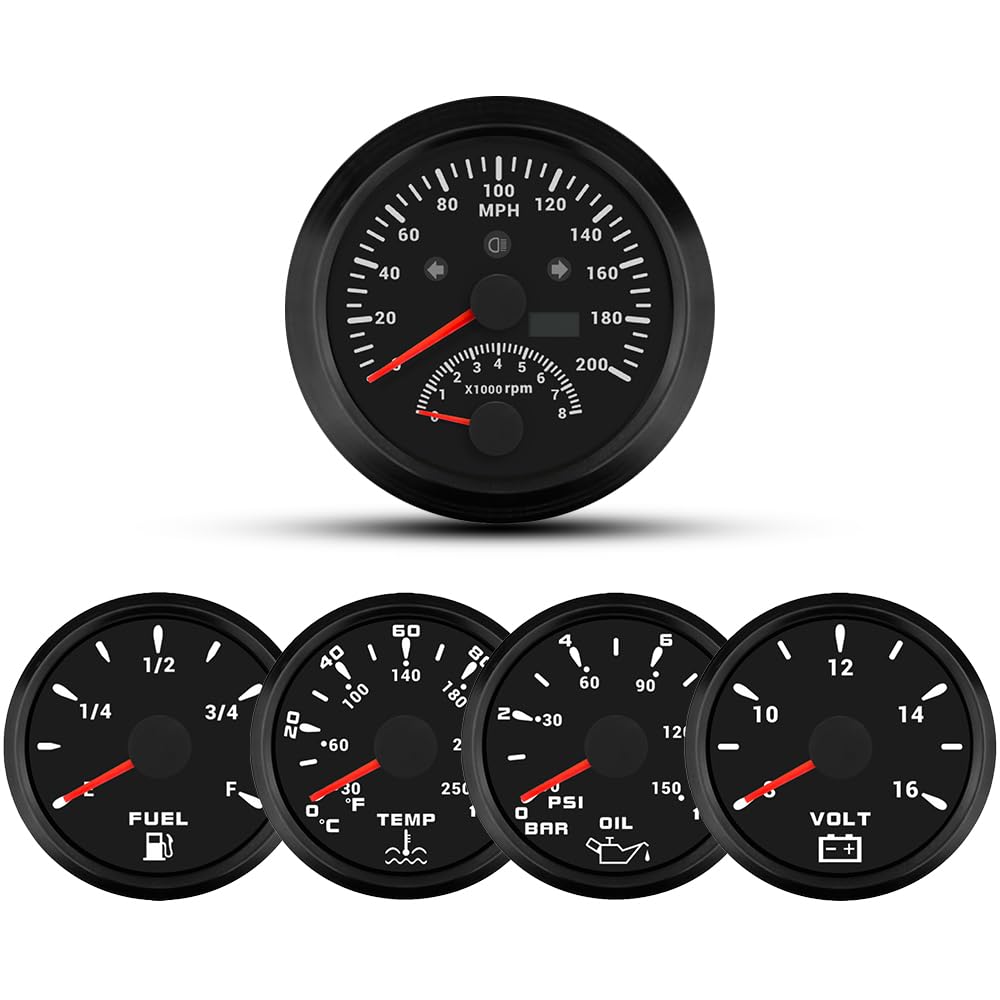

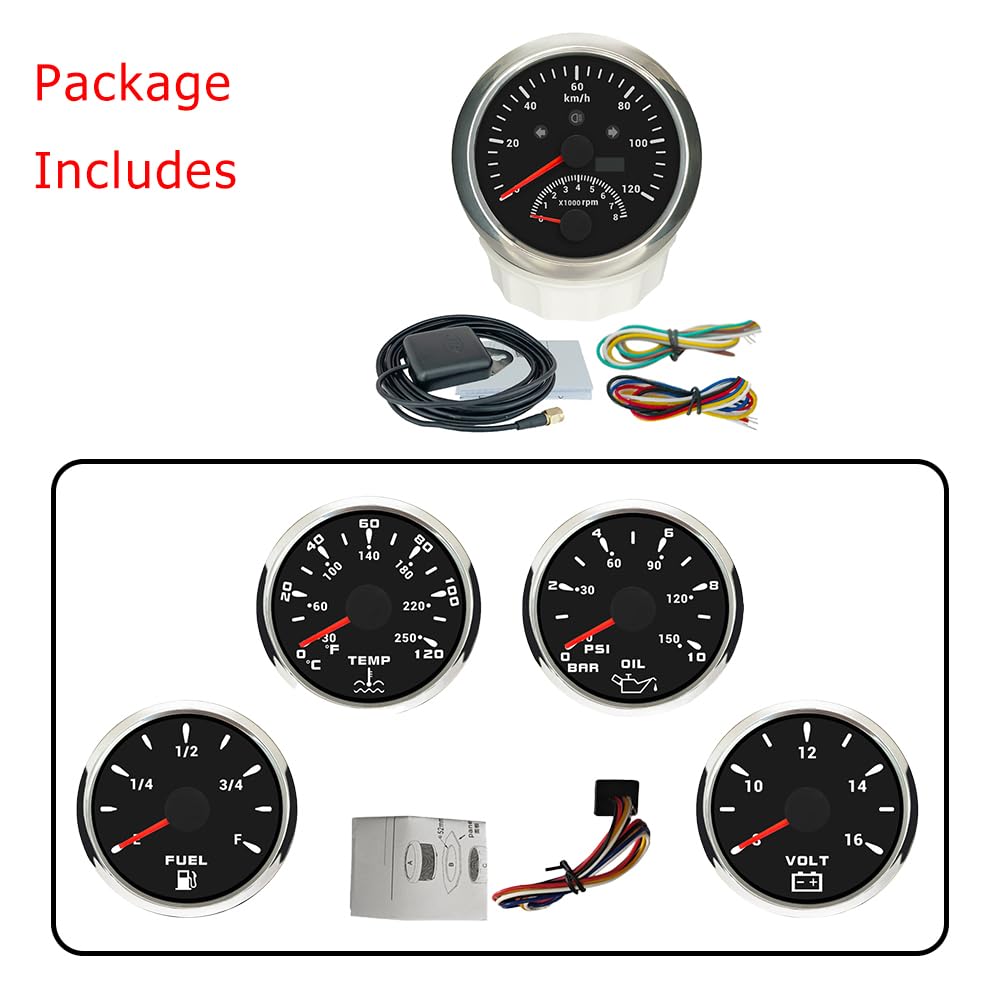

• Gauge Set-2in1 Multi-Function Gauge, Fuel Level Gauge, Water Temperature Gauge, Oil Pressure Gauge and Voltmeter.
• Gauge Set-GPS speedometer indicating range: 0-200MPH, Tachometer indicating Range: 0-8000 RPM, Fuel Level Gauge indicating Range: E-1/2-F, Water Temperature Gauge indicating Range: 0-120℃, Oil Pressure Gauge indicating Range: 0-10Bar 0-150Psi, Voltmeter indicating Range: 8-16V.
• Gauge Set-GPS Speedometer's signal: GPS signal, Tachometer's signal: Pulse signal, Fuel Level Gauge's Signal: 0-190ohm, Water Temperature Gauge's Signal: 1600-22ohm, Oil Pressure Gauge's Signal: 10-184ohm.
• 2in1 Multi-Function Gauge's installtion:Cut an 85mm (3 3/8") hole in the panel and allow a clearance of 55mm (2 3/16”) behind the panel to fit the gauge. Put the gauge in the hole and screw down. Fuel Level Gauge, Water Temperature Gauge, Oil Pressure Gauge and Voltmeter's installtion: Cut an 52mm (2 1/16") hole in the panel and allow a clearance of 55mm (2 3/16”) behind the panel to fit the gauge. Put the gauge in the hole and screw down.
• Securely fasten GPS antenna, preferably outdoors (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. Do not cut cable.
