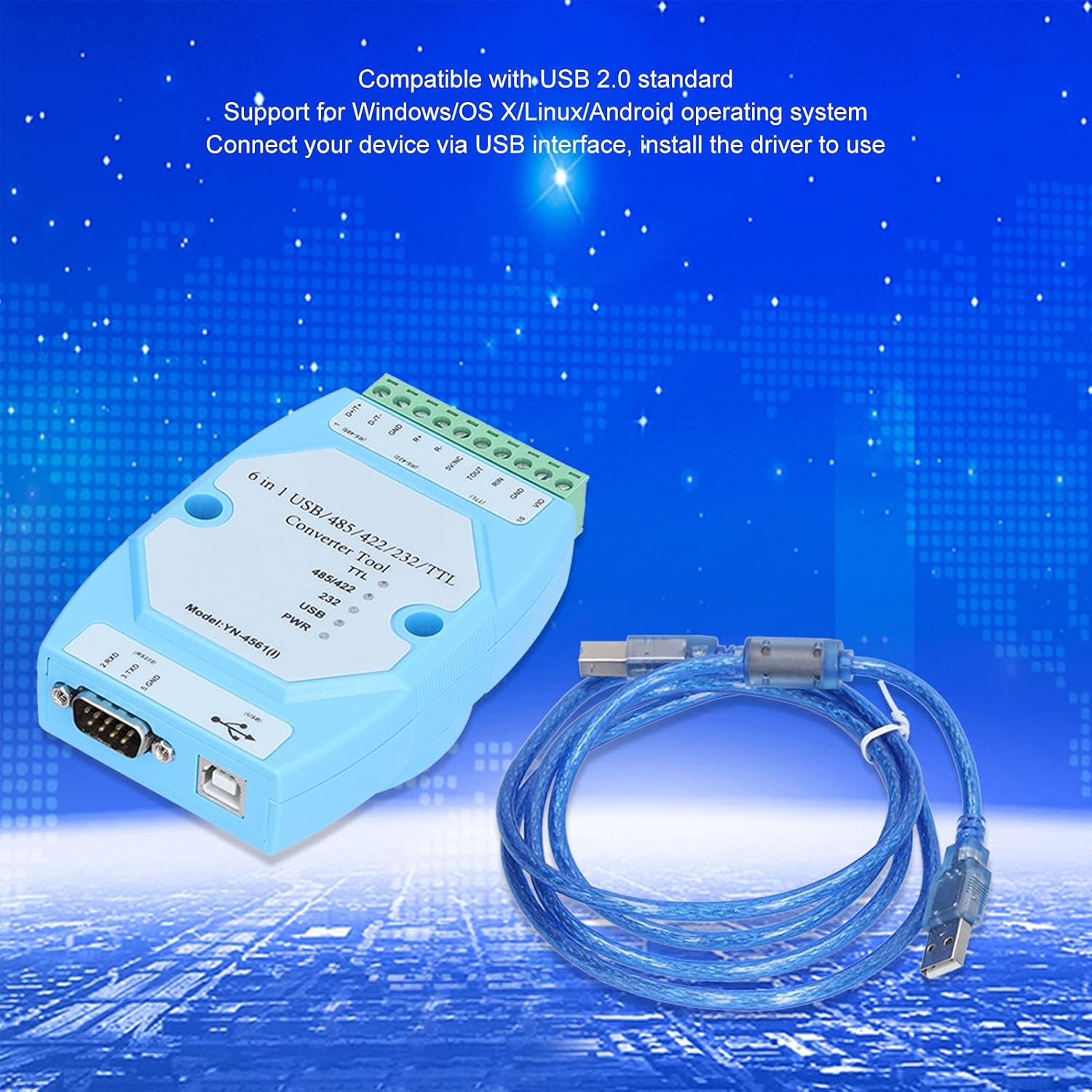

Eujgoov Serial Port Module Isolated 6 in 1 FT232 USB 485 422 232 TTL Converter YN4561I for Industrial Use

Spec: Item Type: Serial Port Module Material: ABS Model: YN4561I USB Compatibility: Compliance with USB 2.0 standards, support hot swap plug-and-play Port Design USB: Standard b square port, equipment comes with a turn b wire RS232: Standard DB9 serial port male RS485 / 422: Plug-in terminal TTL: Insert terminal Transmission Rate: 1200bps - 115.2kbps Check Bit: Odd check, even check, no check Data Bit: 5, 6, 7, 8 Stop Bit: 1, 1.5, 2 RS232: TX, RX, GND, conforms to TIA / EIA-232 RS485: D +, D- balance difference half duplex, in line with TIA / EIA-485 standard RS422: T +, T-, R +, R- balance differences full duplex, in accordance with TIA / EIA-422 32 x RS-422 or RS-485 devices can be connected TTL: , RXIN, TXOUT, GND support 5V or 3V level Work Distance: RS-232: 50ft(15 meters) at 9.6kbps Package List: 1 x Serial Port Module 1 x Cable 1 x User Manual Note: Do not use outside the parameter voltage range. 1. Plug-and-play: Powered by usb and no external power supply needed, this module is compatible with a wide range of os x, and devices. 2. Multi-os Compatibility: The yn-4561i supports usb 2.0 and works with os x, and systems, making it easy to setup and use. 3. Versatile Isolation Tool: No need for jumpers or switches, this 6-in-1 module effortlessly converts between usb, rs-232, rs-485/422, and ttl levels. 4. Easy Installation: Featuring standard usb and serial ports, this module comes with all necessary cables for quick and easy setup. 5. 1kv Isolation Protection: With 1kv isolation between usb, rs-232, rs-485/422, and ttl, this module allows seamless conversion between various interfaces.

• Plug-and-play: Powered by usb and no external power supply needed, this module is compatible with a wide range of os x, and devices.
• YN‑4561I is compatible with USB 2.0 standard, supports for for OS X , for Linux , for Android operating system. Simply connect your device via USB interface, install the driver to use immediately
• Versatile Isolation Tool: No need for jumpers or switches, this 6-in-1 module effortlessly converts between usb, rs-232, rs-485/422, and ttl levels.
• Easy Installation: Featuring standard usb and serial ports, this module comes with all necessary cables for quick and easy setup.
• 1kv Isolation Protection: With 1kv isolation between usb, rs-232, rs-485/422, and ttl, this module allows seamless conversion between various interfaces.
