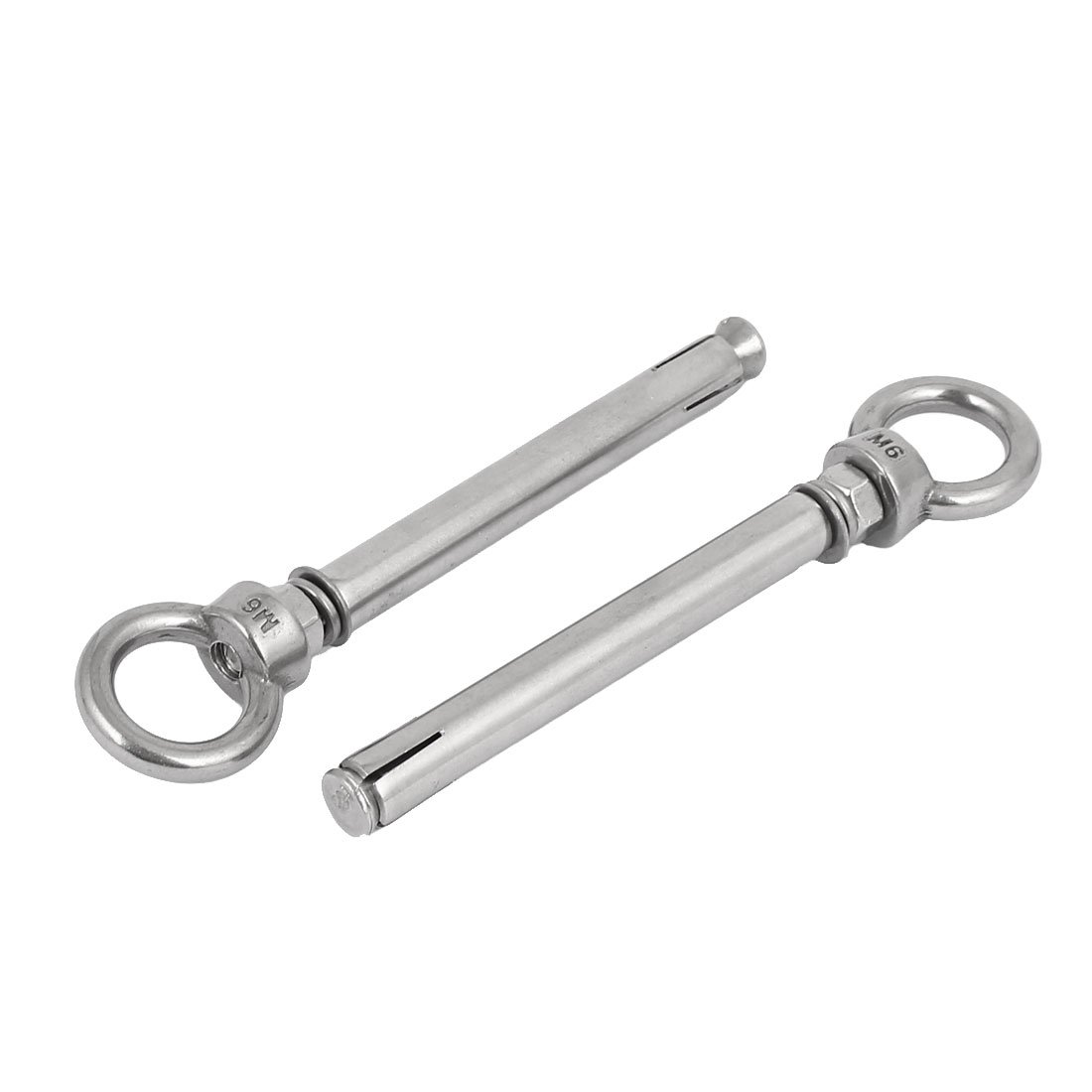

M6x100mm 304 Stainless Steel Expansion Screw Closed Hook Anchor Bolt 10pcs (e2229d5ac74262d1f0618c5b4a68d74b)

Aexit M6x100mm 304 Stainless Steel Expansion Screw Closed Hook Anchor Bolt 10pcs (e2229d5ac74262d1f0618c5b4a68d74b)M6 male thread Expansion screw hook anchor bolt with flat washer and hex nut.Closed hook bolts suitable for secure and reliable fixing of items and fixtures to concrete, brick, walls and any solid surface.Installation methods: Select a chopping bit with the same diameter as expansion screw casing, and install it on the electric drill for punching. The depth of the hole should be equal to the length of the bolt. Then insert the expansion bolt set into the hole. Remember: Do not screw off the nut and prevent the bolt from falling into the hole when the drill is too deep.Tighten the nut for 2 to 3 buckles and unscrew the nut when expansion bolt si very tight without any looseness. Then the fixed items are mounted with perforated fixed part and installed aiming at bolt. The gasket or spring washer outside is used to screw the nut tightly.Description in FrenchBoulon d'ancrage à crochet fermé par vis d'expansion d'acier inoxydable 304 de M6x100mm 304 10pcsNom du produit: Boulon à crochet de dilatation; Matériau: Acier inoxydable 304; Poids: 522 gContenu de l'emballage: 10pcs x boulon à crochet pour expansion; diamètre de perforation: 10mm / 0.4' 'Couleur principale: Ton argenté; Taille totale: (Longueur) 120mm / 4.7' 'Taille de filetage: M6 x 100mm / 0.24' 'x 4' '(D * Longueur du boulon); Taille du manchon: 9 x 80mm / 0.35' 'x 3.1' '(D * L)Diamètre de la tige de crochet: 5mm / 0,2' '; Diamètre de l'oeillet: 27 x 17mm / 1,1' 'x 0,67' '(Diamètre extérieur * Diamètre intérieur)

• Product Name: Expansion Hook Bolt; Material: 304 Stainless Steel; Weight: 522g
• Package Content: 10pcs x Expansion Hook Bolt; Punch Diameter: 10mm/0.4"
• Main Color: Silver Tone; Overall Size: (Length) 120mm/4.7"
• Thread Size: M6 x 100mm/0.24" x 4" (D*Bolt Length); Sleeve Size: 9 x 80mm/0.35" x 3.1" (D*L) (9b651809-2b17-11ea-990f-4cedfbbbda4e
• Hook Shaft Dia: 5mm/0.2"; Eyelet Diameter: 27 x 17mm/1.1" x 0.67" (Outer Dia.*Inner Dia.) (Diamètre de la tige de crochet: 5mm / 0,2' '; Diamètre de l'oeillet: 27 x 17mm / 1,1' 'x 0,67' '(Diamètre extérieur * Diamètre intérieur)
