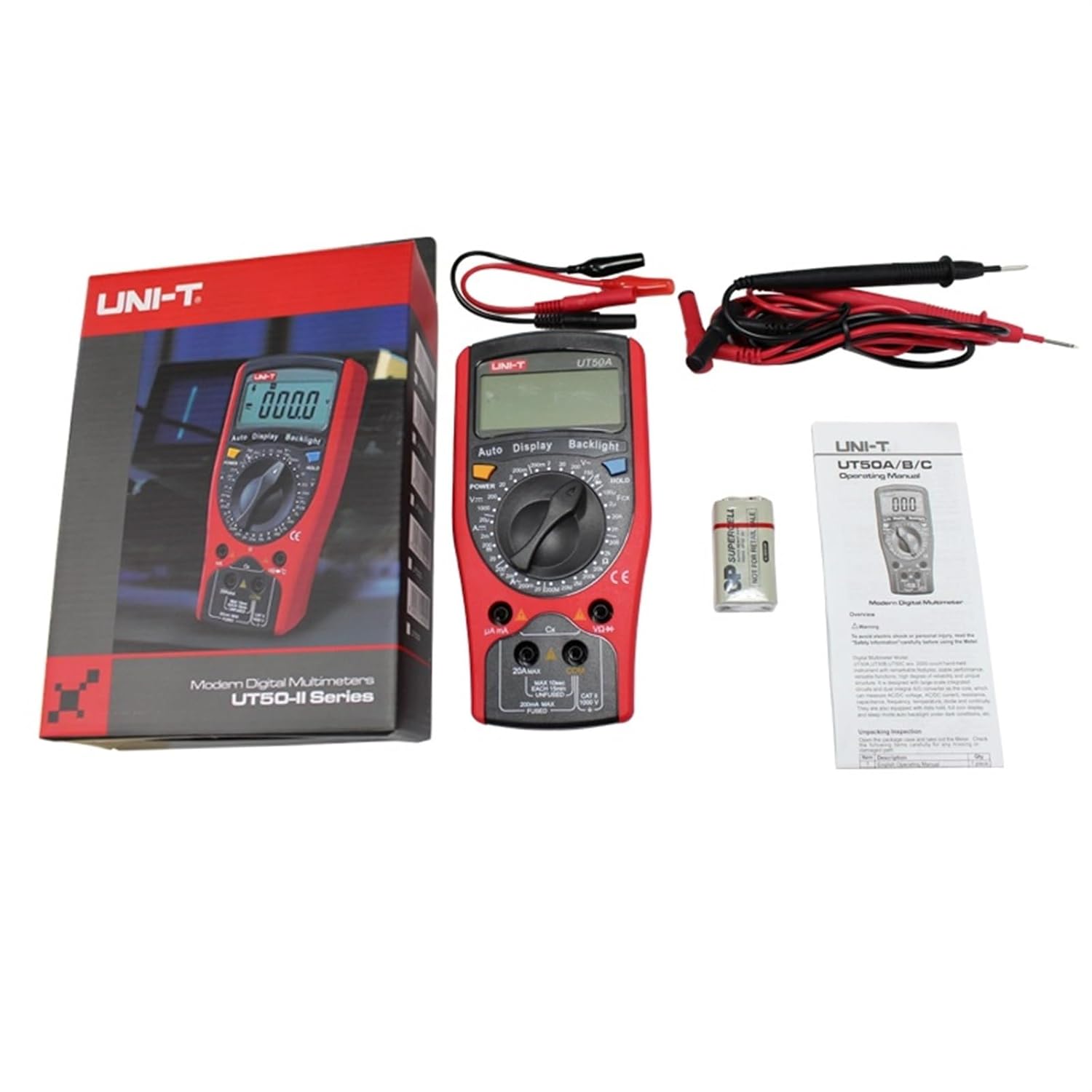

Mini Digital Multimeter UT50A 750V AC Voltmeter Ammeter Capacitor Tester Resistance Test

Multi TestersUT50A Digital MultimeterUT50A is a 31/2-digit handheld digital multimeter with complete functions, stable performance, trendy structure, safe and reliable. The circuit design of the whole machine is based on large-scale integrated circuits, dual-integral A/D converters, and is equipped with full-featured overload protection. It can be used to measure AC and voltage and current, resistance, capacitance, and diode forward voltage drop. It has data retention, full-function symbol display and sleep function.Features1. AC voltage measurement2. AC current measurement3. Resistance measurement4. Capacitance measurement5. Diode test6. Fengming tube continuity test7. Automatic shutdown8. BacklightParameterSpecificationsRangeUT50A voltage (V)200mV/2V/20V/200V±(0.5%+1)1000V±(0.8%+2)AC voltage (V)200mV±(1.2%+3)2V/20V/200V±(0.8%+3)750V±(1.2%+3) current (A)20A/2mA±(0.8%+1)200mA±(1.5%+1)20A±(2%+5)AC current (A)200A/2mA±(1%+3)200mA±(1.8%+3)20A±(3%+5)Resistance ()200±(0.8%+3)2k/20k/200k/2M±(0.8%+1)20M±(1%+2)200M±(5%+10)Capacitance (F)2nF/20nF/2F±(4%+3)100F±(5%+4)Diode test1mV resolution, 250V voltage protectionOpen circuit voltage is about 2.8VFengming continuity test1 resolution, 250V voltage protection<;70, the buzzer sounds Display count1999Back lightAutoPower Off10MinData HoldGeneral CharacteristicsPower9V NEDA1604 or 6F22 or 006P(No include)Product net weight275gProduct size165mm x 80mm x 38.3mmPlease note: Batteries are not included with the product.
