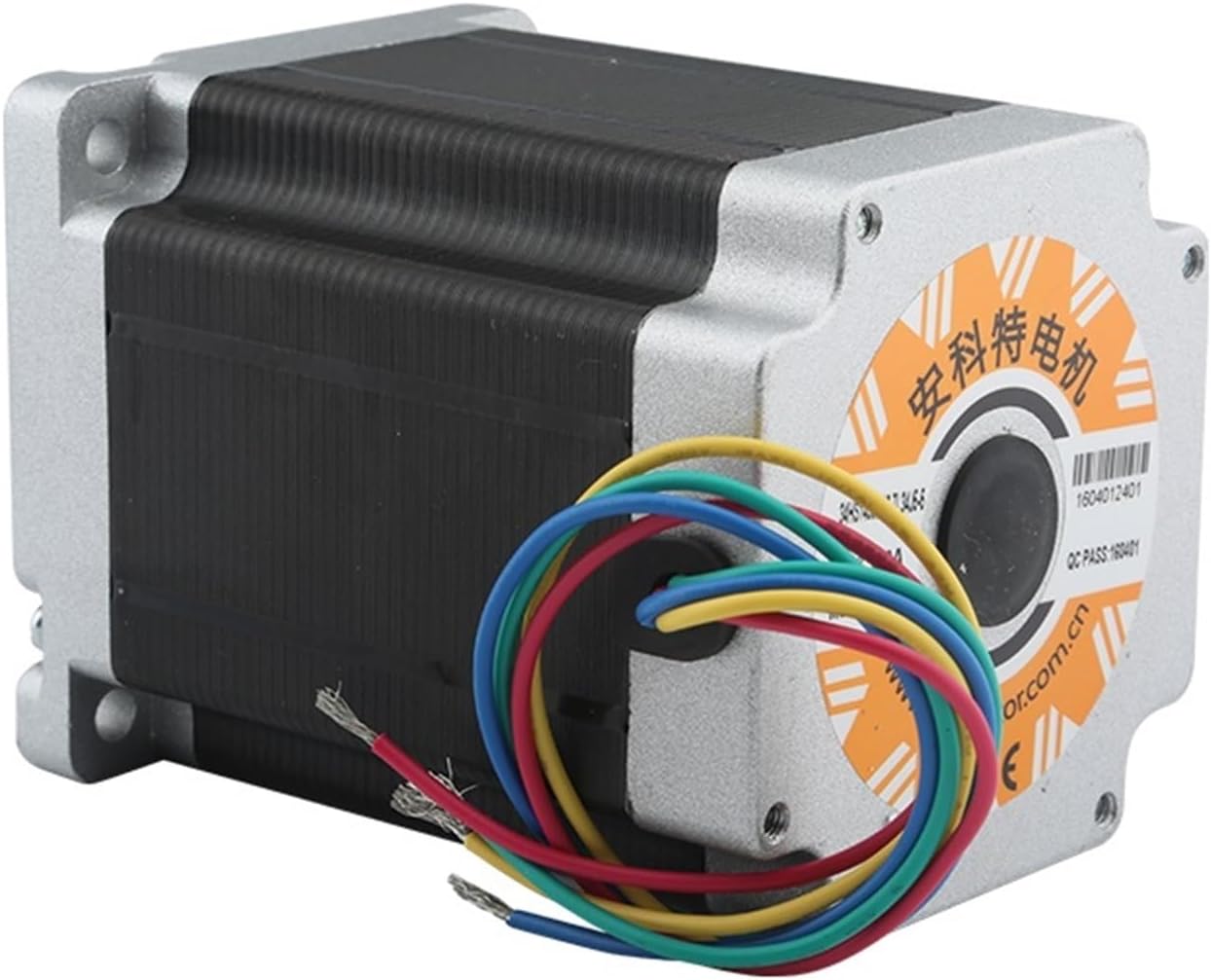

Nema34 Stepping Motor 2 Phase 8Nm 5A Drive Motor 4 Lead Cable for Router Engraving and Milling Machine 3D Printer(Size:Key Shaft 12.7mm)

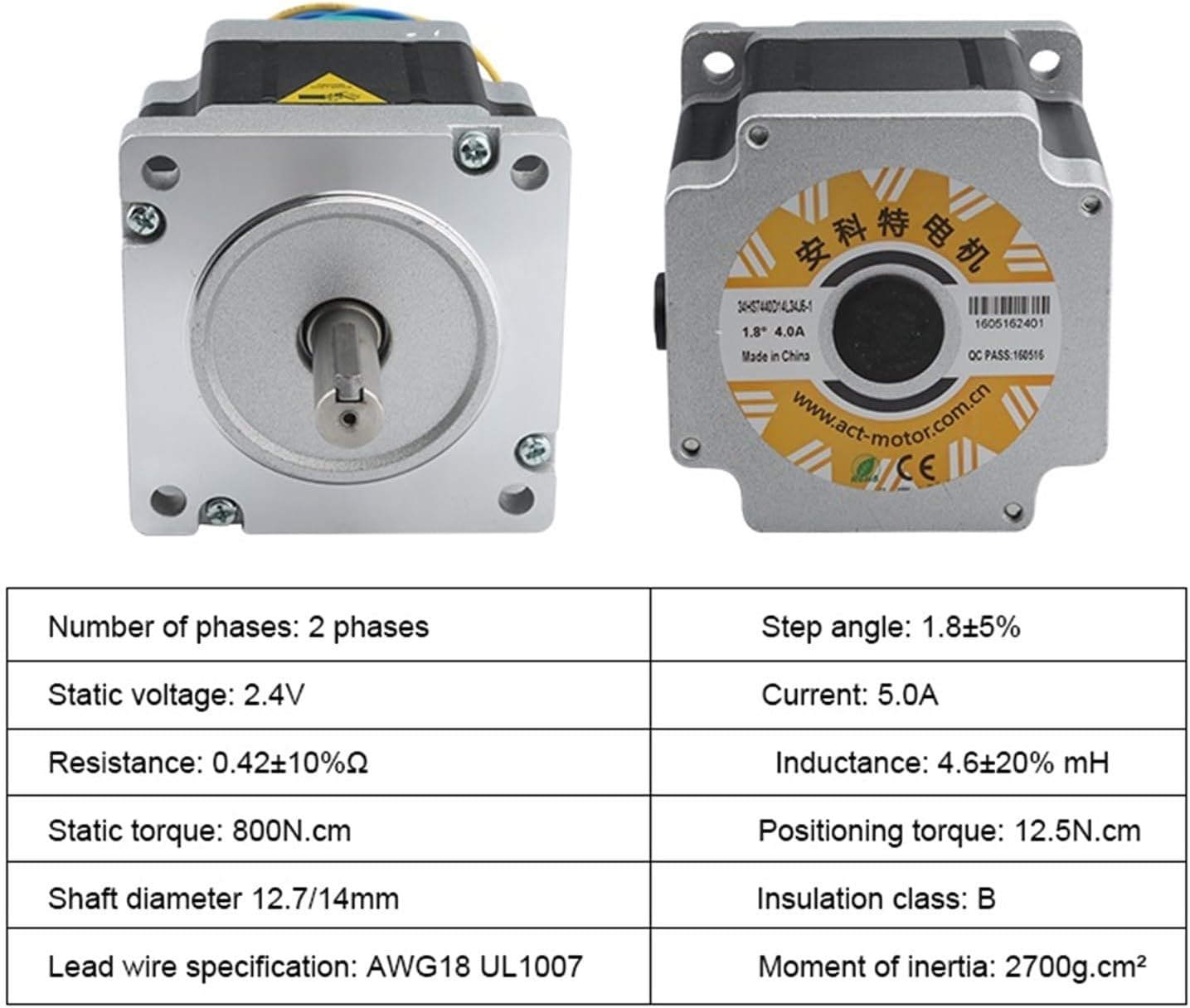

Motor DrivesNumber of phases: 2 phases Step angle: 1.85% Static voltage: 2.4V Current: 5.0A Resistance: 0.4210% Inductance: 4.620% mH Static : 800N.cm Positioning : 12.5N.cm Shaft diameter: 12.7/14mm Insulation class: B Lead wire specification: AWG18 UL1007 Moment of inertia: 2700g.cm2;ADVANTAGE01 Electromagnetic steel is high grade, we usually use SH grade type. 02 The rotor is coated with a coating to reduce burrs, work smoothly and with low noise. 03 We test the parts of the stepper motor step by step. Before assembly, test the stator and then the rotor. 04 After the stepper motor is assembled, we will conduct another test on it to ensure .Sturdy structure, long service life, materials, including bearings and shafts.Even in the harshest environment, robust assembly, high speed range and excellent performance Make the motor an ideal solution for demanding positioning applications.Smooth surfaceThe surface of the body is clean and smooth, not easy to rust and stainsFine packaging carton packaging with foam wrap to ensure product storage and transportation to avoid bumps and damage.Scope of applicationThis product is widely used in automation equipment for engraving machines, printers, , embroidery machines, stage lighting, textile automation, printing, packaging and other industries.

• Motor Drives
• Nema34 Stepping Motor 2 Phase 8Nm 5A Drive Motor 4 Lead Cable For Router Engraving And Milling Machine 3D Printer
